Hydro-Mix®
Chemical dispensing with 6 independent foaming applications
Hydro-Mix®
Chemical dispensing with 6 independent foaming applications
Get consistent and precise chemical dispensing with the exclusive Hydro-Mix system, used in conveyorized tunnel car washes and in-bay automatic applications. Improve vehicle coverage and lower operating costs by reducing expensive chemical waste with every wash.
Hydro-Mix meets the demand of high-volume tunnel wash applications with a very efficient chemical dispensing system, helping you save money on your chemical applications. Air-actuated water valves reduce chemical waste, increase performance and double your cleaning power.
Designed for in-bay automatic and tunnel/conveyor systems, the Hydro-Mix Chemical Dispensing System delivers precisely diluted chemistry to multiple applications simultaneously. Customizable to supply all applications in your car wash from .25 GPM up to high-volume foam curtain applications. With a stainless steel, rugged design, it's built to meet the rigorous demands of high-volume sites, and is tested for reliable operation up to 100,000 wash cycles.
Specifications
| Booster Pump | 20 GPM, 3HP Booster Pump |
|---|---|
| Power (230V) | 230V/3PH/60Hz/8.9A |
| Power (460V) | 460V/3PH/60Hz/4.3A |
| Breaker | Recommended for use with 30A Breaker |
| 1-Pump Wall Mount | 12” x 24” x 48” (D x W x L) |
|---|---|
| 2-Pump Wall Mount | 12” x 24” x 48” (D x W x L) |
| Hydro-Mix Panel | 18” x 38” x 24” (D x W x L) |
| SCC Panel | 7” x 12” x 14” (D x W x L) |
| MCC Panel | 7” x 12” x 14” (D x W x L) |
| Water Line Supply | 1” ID Water Line Supply (20 GPM, 3HP Booster Pump), per pump |
|---|---|
| Air Inlet | ½” OD Polyflow, 15 CFM @ 80-120 PSI, per HM Panel |
| Up to 4.5 GPM | ½” ID Polyflow or Hose |
|---|---|
| Above 5.0 GPM | ¾” ID Polyflow or Hose |
| Max Water Source Temp | Recommended up to 110 F, max water temp 130 F |
|---|---|
| Operating Water Pressure | Factory Set 200 PSI (assumes 45 PSI city feed) |
| Water Filtration | 50 Micron |
| Control | Pre-Wired Terminal Strip, Relay Control, 120vac Option, 24vac Option |
Features(13)
- Stainless Steel Wall Mount Panel Design
- Six Independent Solution Applications
- Six Independent Air Assist Regulators

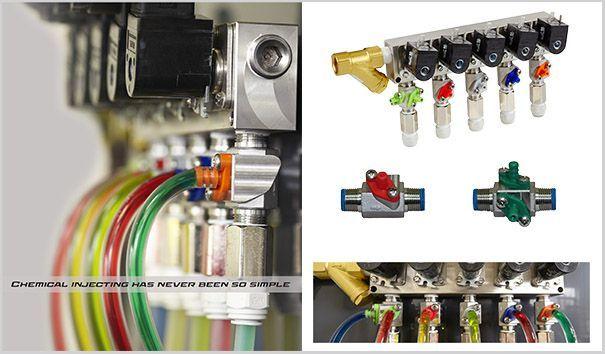

- Quick Connect Injector Design
- Quick Connect Pump Inlet w/Strainer
- Remote Pre-Wired MCC Panel
- Remote Pre-Wired SCC Panel
- Swivel Wall Mount Bracket
- Lighted DIN Connectors
- Pre-Wired DIN Cables
- M12 Connectors
- M12 Junction Block
- System Enable/Disable Button
Options(9)

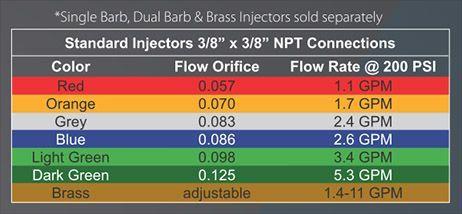

- Configure Rocket Injectors from .057 to 11 GPM
- Optional Tri-Foam Manifold
- Optional Duo-Foam Manifold
- Hi-Flow Injector Configuration
- Stainless Steel Freestanding Frame
- Stainless Steel Tool Tray
- Air Gun
- Spare Parts Kit
- Install Kit
